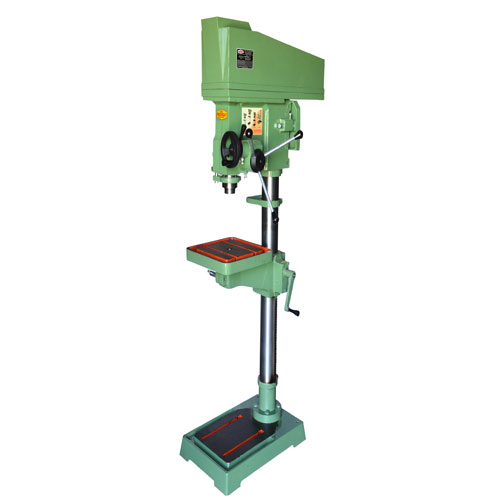

25MM Pillar Drill Machine Regular Model
| SPECIFICATIONS | CMW/25mm/1 |
| Drill Cap. In M.S. | 25mm |
| Drill Cap.In C.I. | 32 mm |
| Tapping Cap. | 20 mm |
| Column Diameter | 90 mm |
| Ram Diameter | 72 mm |
| Spindle Traveling | 152.4 mm |
| Centre Of Spindle To Column Face | 228.6 mm |
| Taper Spindle | M.T.3/M.T.4 |
| Over All Height Of Machine | 1625 mm |
| Size Of Sqare Table | 380 mm (12.5'*12.5" ) |
| Size Of Round Table | 381 mm (15.5" ) |
| Size Of Machine Base | 558 mm*332mm(22"*17" ) |
| Maximum Distance Of Spindle To Base | 1015 mm (40" ) |
| No.Of Speed Range | 8 96*3200RPM |
| V-Belt Section | B-48 |
| Electrical Motor | 1 H.P |
| Weight Of Machine Without Motor | 190 Kgs (Approx ) |
